Low Head Socket Cap Screw

Low Head Socket Cap Screw for Sale Low Head Socket Cap Screw for Sale Low Head Socket Cap Screw for Sale

Socket Head Cap Screw

Plain = SC800-------

Zinc = SC800-------ZB

Class 3A Fit

Rockwell Hardness 38-43

Scroll Right →

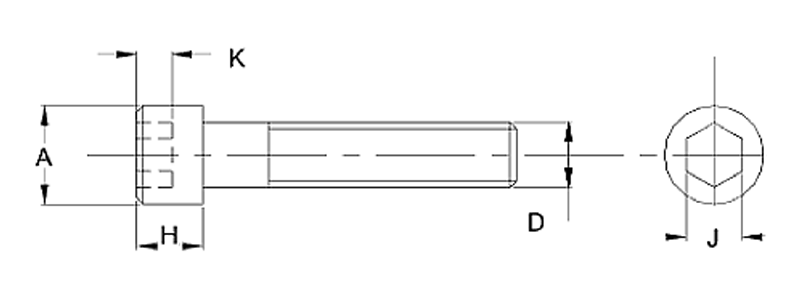

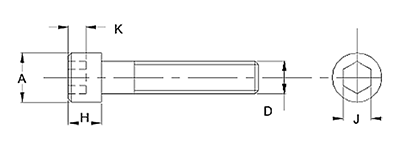

Nominal Size, Inches D A H J
Body Diameter Head Diameter Head Height Socket Size
Max Min Max Min Max Min
#8 .164 .1585 .270 .262 .082 .079 .141
#10 .190 .184 .312 .303 .095 .092 .156
.250 .250 .2435 .375 .365 .125 .121 .188
.3125 .3125 .3053 .469 .457 .156 .152 .250
.375 .375 .3678 .562 .550 .187 .182 .312
.4375 .4375 .4294 .656 .642 .218 .213 .375
.500 .500 .4919 .750 .735 .250 .244 .375

Disclaimer: The dimensions listed are for reference only. Sizes not listed may be available off the shelf or can be manufactured to customer requirements.
