* Decking screws are commonly referred to as type #17, but type #17 have an unthreaded portion. *
| Coarse | Fine | Decking | |
| 6 X 1 | DWPBC010006X016 | DWPB010006X016 | DPBC010006X016D1 |
| 6 X 1 1/8 | DWPBC010006X018 | DWPB010006X018 | DPBC010006X018D1 |
| 6 X 1 1/4 | DWPBC010006X020 | DWPB010006X020 | DPBC010006X020D1 |
| 6 X 1 5/8 | DWPBC010006X026 | DWPB010006X026 | DPBC010006X026D1 |
| 6 X 2 | DWPBC010006X032 | DWPB010006X032 | DPBC010006X032D1 |
| 6 X 2 1/4 | DWPBC010006X036 | DWPB010006X036 | DPBC010006X036D1 |
| 7 X 2 | DWPBC010007X032 | ||
| 7 X 2 1/2 | DWPBC010007X040 | DWPB010007X040 | |
| 8 X 3 | DWPBC010008X048 | DWPB010008X048 | DPBC010008X048D1 |
| 10 X 1 1/2 | DWPBC010010X024 | DWPB010010X024 | DPBC010010X024D1 |
| 10 X 3 3/4 | DWPB010010X060 | DPBC010010X060D1 | |
| 10 X 4 1/2 | DWPB010010X072 | ||
| 10 X 5 | DWPB010010X080 | ||
| 10 X 6 | DWPB010010X096 |
Standard Zinc - DWPMT010-------Z1
Standard Zinc - DQBC010-------Z1

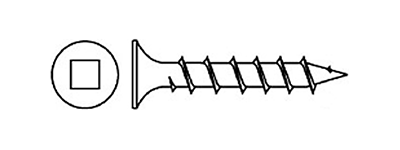

Sq Drive Trim head - DWQT010-------
Sq Drive #17 - DQR17010-------
Disclaimer: The dimensions listed are for reference only. Sizes not listed may be available off the shelf or can be manufactured to customer requirements.
