C-1035 Steel
Plain = ISF010-------
Zinc = ISF010-------Z1
Galvanized = ISF010-------GD

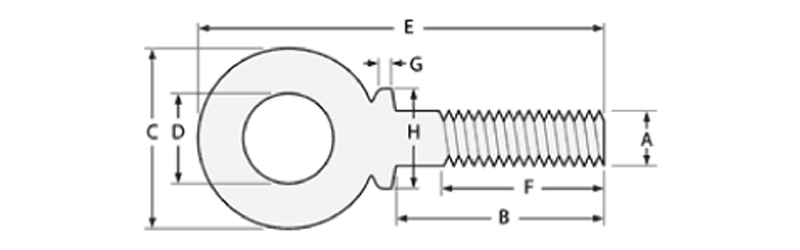

| A | B | C | D | E | G | H | F | Weight per 100 |
| Diameter | Shank Length | Outside Eye Diameter | Inside Eye Diameter | Overall Length | Shoulder Diameter | Shoulder Thickness | Thread Length | |
| 1/4 | 1" | 1 1/4" | 3/4" | 2 1/4" | 17/32 | 5/32 | 1" | 5 |
| 5/16 | 1 1/8" | 1 1/2" | 7/8" | 2 5/8" | 19/32 | 5/32 | 1 1/8" | 10.5 |
| 3/8 | 1 1/4" | 1 21/32" | 1" | 2 29/32" | 21/32 | 5/32 | 1 1/4" | 15.5 |
| 7/16 | 1 3/8" | 1 27/32" | 1 3/32" | 3 7/32" | 29/32 | 7/32 | 1 3/8" | 20.5 |
| 1/2 | 1 1/2" | 2 1/16" | 1 3/16" | 3 9/16" | 1 1/32 | 9/32 | 1 1/2" | 33 |
| 9/16 | 1 5/8" | 2 9/32" | 1 9/16" | 3 29/32" | 1 3/16 | 9/32 | 1 5/8" | 44.5 |
| 5/8 | 1 3/4" | 2 1/2" | 1 3/8" | 4 1/4" | 1 9/16 | 13/32 | 1 3/4" | 64 |
| 3/4 | 2" | 2 13/16" | 1 1/2" | 4 13/16" | 2" | 90.5 | ||
| 7/8 | 2 1/4" | 3 1/4" | 1 11/16" | 5 1/2" | 2 1/4" | 135 | ||
| 1 | 2 1/2" | 3 9/16" | 1 13/16" | 6 1/16" | 2 1/2" | 190.5 | ||
| 1 1/8 | 2 3/4" | 4" | 2" | 6 3/4" | 2 3/4" | 299.5 | ||
| 1 1/4 | 3" | 4 7/16" | 2 3/16" | 7 7/16" | 3" | 399 | ||
| 1 1/2 | 3 1/2" | 5 3/16" | 2 1/2" | 8 11/16" | 3 1/2" | 662.5 |
Dimensions per Chicago Hardware
| Diameter and Thread | Working Limit | |
| Straight Pull | 45° Pull (Shoulder Only) | |
| 1/4"-20 | 500 | 125 |
| 5/16"-18 | 900 | 225 |
| 3/8"-16 | 1400 | 350 |
| 7/16"-14 | 2000 | 500 |
| 1/2"-13 | 2600 | 650 |
| 9/16"-12 | 3200 | 750 |
| 5/8"-11 | 4000 | 1000 |
| 3/4"-10 | 6000 | 1500 |
| 7/8"-9 | 7000 | 1750 |
| 1"-8 | 9000 | 2250 |
| 1 1/8"-7 | 12000 | 2500 |
| 1 1/4"-7 | 15000 | 3750 |
| 1 1/2"-6 | 21000 | 4900 |
Disclaimer: The dimensions listed are for reference only. Sizes not listed may be available off the shelf or can be manufactured to customer requirements.
