Hanger Bolts

Hanger Bolts for Sale Hanger Bolts for Sale Hanger Bolts for Sale

Plain = HB020-------

Zinc = HB020-------Z1

Scroll Right →

Common Sizes

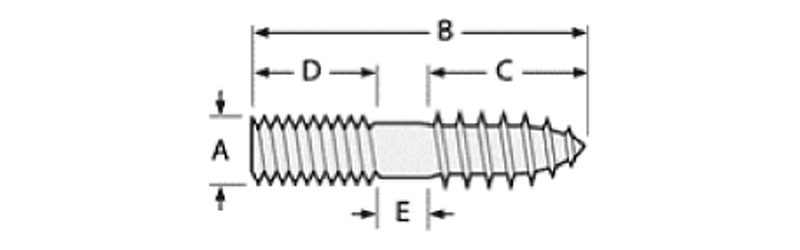

A x BCDE
SizeWood Thread LengthMachine Thread LengthShank Length
10-24 x 1-1/2 7/85/8-
10-24 x 211-
10-24 x 2-1/21-1/21-
10-24 x 31-1/21-1/2-
10-24 x 3-1/221-1/2-
1/4-20 x 1-1/27/85/8-
1/4-20 x 1-3/413/4-
1/4-20 x 211-
1/4-20 x 2-1/21-1/21-
1/4-20 x 31-1/21-1/2-
1/4-20 x 3-1/221-1/2-
1/4-20 x 422-
1/4-20 x 4-1/231-1/83/8
1/4-20 x 531-3/85/8
5/16-18 x 1-1/27/85/8-
5/16-18 x 1-3/413/4-
5/16-18 x 211-
5/16-18 x 2-1/21-1/21-
5/16-18 x 31-1/21-1/2-
5/16-18 x 3-1/221-1/2-
5/16-18 x 422-
5/16-18 x 4-1/231-1/83/8
5/16-18 x 531-3/85/8
5/16-18 x 631-1/21-1/2
3/8-16 x 211-
3/8-16 x 2-1/21-1/21-
3/8-16 x 31-1/21-1/2-
3/8-16 x 3-1/221-1/2-
3/8-16 x 422-
3/8-16 x 4-1/231-1/83/8
3/8-16 x 531-3/85/8
3/8-16 x 5-1/231-1/21
3/8-16 x 631-1/41-3/4

Dimensions per Chicago Hardware

Disclaimer: The dimensions listed are for reference only. Sizes not listed may be available off the shelf or can be manufactured to customer requirements.
