Regular Pattern
Steel
Stainless
PS020---X---Z1
PSH020---x---Z1
Heavy Pattern
Steel
Stainless
PSH020---x---Z1
PSH302---x---

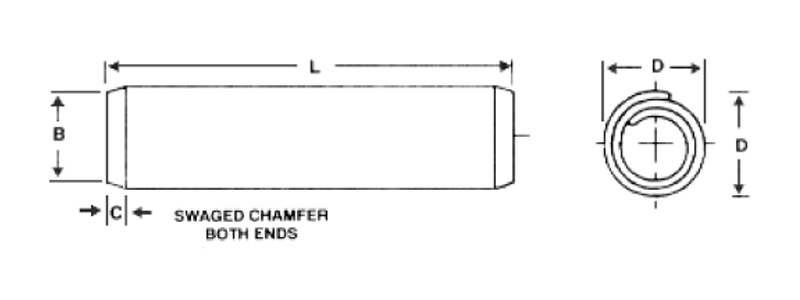

| Size | D | Chamfer | Recommended Hole Size | |||||
| Standard Duty | Heavy Duty | Nominal | ||||||
| Min | Max | Min | Max | B | C | Min | Max | |
| 1/16 | .067 | .072 | 0.066 | 0.070 | .059 | .028 | .061 | .065 |
| 5/64 | .083 | .088 | 0.082 | 0.086 | .075 | .032 | .077 | .081 |
| 3/32 | .099 | .105 | 0.098 | 0.103 | .091 | .038 | .093 | .097 |
| 1/8 | .131 | .138 | 0.130 | 0.136 | .121 | .044 | .124 | .129 |
| 5/32 | .163 | .171 | 0.161 | 0.168 | .152 | .048 | .155 | .160 |
| 3/16 | .196 | .205 | 0.194 | 0.202 | .182 | .055 | .185 | .192 |
| 7/32 | .228 | .238 | 0.226 | 0.235 | .214 | .065 | .217 | .224 |
| 1/4 | .260 | .271 | 0.258 | 0.268 | .243 | .065 | .247 | .256 |
| 5/16 | .324 | .337 | 0.322 | 0.334 | .304 | .080 | .308 | .319 |
| 3/8 | .388 | .403 | 0.386 | 0.400 | .366 | .095 | .124 | .129 |
| 1/2 | .516 | .535 | 0.514 | 0.532 | .488 | .095 | .493 | .510 |
| Size | Min Double Shear Lb | |||
| Standard | Heavy | |||
| Carbon Steel and 420SS | 302/304SS | Carbon Steel and 420SS | 302/304SS | |
| 1/16 | 330 | 265 | 475 | 360 |
| 5/64 | 550 | 425 | 800 | 575 |
| 3/32 | 775 | 600 | 1,150 | 825 |
| 1/8 | 1,400 | 1,100 | 2,000 | 1,700 |
| 5/32 | 2,200 | 1,700 | 3,100 | 2,400 |
| 3/16 | 3,150 | 2,400 | 4,500 | 3,500 |
| 7/32 | 4,200 | 3,300 | 5,900 | 4,600 |
| 1/4 | 5,500 | 4,300 | 7,800 | 6,200 |
| 5/16 | 8,700 | 6,700 | 12,000 | 9,300 |
| 3/8 | 12,600 | 9,600 | 18,000 | 14,000 |
| 1/2 | 25,500 | 17,500 | 32,000 | 25,000 |
Disclaimer: The dimensions listed are for reference only. Sizes not listed may be available off the shelf or can be manufactured to customer requirements.
