Belleville Washer

Belleville Washer for Sale Belleville Washer for Sale Belleville Washer for Sale

Steel
Stainless

WBELL010---Z1
WBELL188---

Scroll Right →

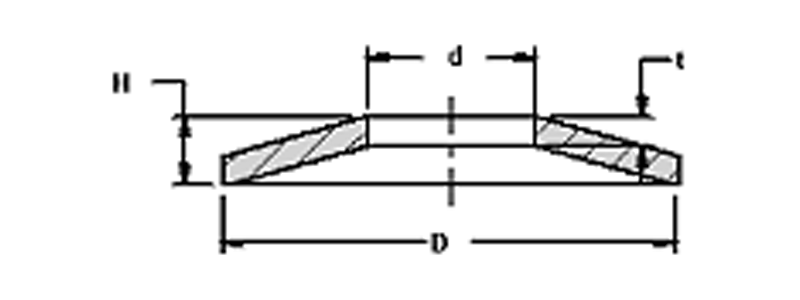

Bolt Size ID OD Thickness Deflection Load Flat
Min Max Flat
1/4 .258 .688 .025 .054 .017 1500
5/16 .322 .813 .061 .064 .020 2000
3/8 .386 .938 .070 .074 .022 2700
7/16 .450 1.063 .080 .084 .026 3500
1/2 .515 1.188 .089 .093 .028 4000
9/16 .579 1.313 .098 .103 .031 4500
5/8 .644 1.50 .112 .118 .036 6000
3/4 .773 1.75 .131 .137 .043 8500
7/8 .901 2.00 .150 .157 .048 12000
1 1.03 2.25 .168 .176 .052 15000
1-1/8 1.55 2.5 .187 .196 .057 18000
1-1/4 1.27 2.75 .206 .216 .062 21000
1-3/8 1.396 3.00 .225 .236 .068 24000
1-1/2 1.524 3.25 .244 .256 .074 28000

Disclaimer: The dimensions listed are for reference only. Sizes not listed may be available off the shelf or can be manufactured to customer requirements.
