Lock Washers

(Regular Pattern & Hi-Collar)

Lock Washers for Sale Lock Washers for Sale Lock Washers for Sale

Regular Pattern washers
Case Hardened Steel
Grade 8


Plain = WS010---
Plain = WS080---


Zinc = WS010---Z1
Zinc = WS080---Z1

Hi-Collar Pattern washers
Case Hardened Steel


Plain = WSHC020---


Zinc = WSHC020---Z1

Heavy Pattern (not listed)
Grade 8


Plain = WSH080---


Zinc = WSH080---Z1

Regular Pattern

Bolt
Size

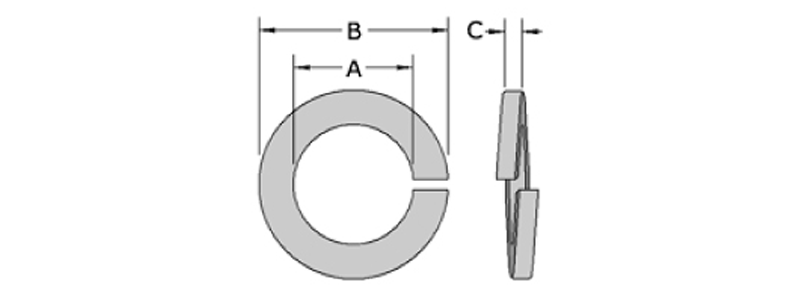

A (min) B (max) C (min)
2 .088 .172 .020
3 .101 .195 .025
4 .141 .209 .025
5 .127 .236 .031
6 .141 .250 .031
8 .167 .293 .040
10 .193 .334 .047
12 .220 .377 .056
1/4 .254 .489 .062
5/16 .317 .586 .078
3/8 .380 .683 .094
7/16 .443 .779 .109
1/2 .506 .873 .125
9/16 .570 .971 .141
5/8 .635 1.079 .156
11/16 .698 1.176 .172
3/4 .760 1.271 .188
13/16 .824 1.367 .203
7/8 .887 1.464 .219
15/16 .950 1.560 .234
1 1.017 1.661 .250
1-1/16 1.080 1.756 .266
1-1/8 1.144 1.853 .281
1-3/16 1.208 1.950 .297
1-1/4 1.271 2.045 .312
1-5/16 1.334 2.141 .328
1-3/8 1.398 2.239 .344
1-7/16 1.462 2.334 .359
1-1/2 1.525 2.430 .375

Hi-Collar Pattern

Bolt
Size
A (min) B (max) C(min)
4 .114 .173 .022
5 .127 .202 .030
6 .141 .216 .030
8 .167 .267 .047
10 .193 .294 .047
1/4 .254 .365 .078
5/16 .317 .460 .093
3/8 .380 .553 .125
7/16 .443 .647 .140
1/2 .506 .737 .103
5/8 .635 .923 .203
3/4 .760 1.111 .218
7/8 .887 1.296 .234
1 1.017 1.483 .250
1-1/8 1.144 1.669 .313
1-1/4 1.271 1.799 .313
1-3/8 1.398 2.041 .375
1-1/2 1.525 2.170 .375
1-3/4 1.775 2.602 .469
2 2.025 2.852 .469
2-1/4 2.275 3.352 .508
2-1/2 2.525 3.602 .508
2-3/4 2.775 4.102 .633
3 3.025 4.352 .633

Disclaimer: The dimensions listed are for reference only. Sizes not listed may be available off the shelf or can be manufactured to customer requirements.
