Square Bevel Washers

(Square Malleable Iron)

Square Bevel Washers for Sale Square Bevel Washers for Sale Square Bevel Washers for Sale

Low Carbon Steel

Plain = WQM020---

Galvanized = WQM020---GD

Zinc = WQM020---Z1

Scroll Right →

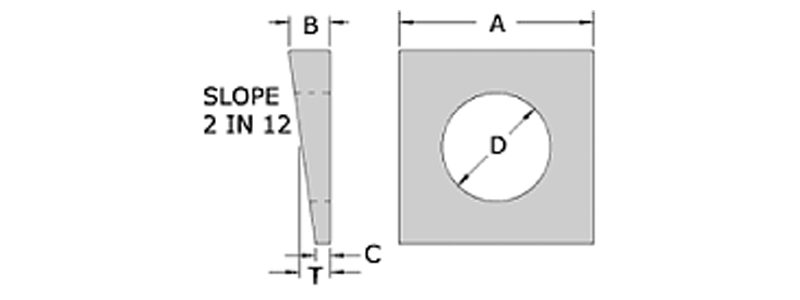

Bolt Size A B C T D Weight Per 100 Pieces
Square Dimension Thickness Diameter
3/8 1.25 0.34 0.12 0.23 0.44 8.6
1/2 1.25 0.34 0.12 0.23 0.56 8.8
5/8 1.50 0.38 0.12 0.25 0.69 14.3
3/4 1.50 0.44 0.19 0.31 0.81 14.3
7/8 2.00 0.56 0.22 0.39 0.94 32.8
1 2.00 0.56 0.22 0.39 1.06 30.2
1-1/8 2.25 0.62 0.25 0.44 1.25
1-1/4 2.25 0.72 0.31 0.52 1.38
1-3/8 2.75 0.78 0.31 0.55 1.50
1-1/2 3.00 0.81 0.31 0.56 1.62

Disclaimer: The dimensions listed are for reference only. Sizes not listed may be available off the shelf or can be manufactured to customer requirements.
