Hillside Washers

(Cast Iron)

Hillside Washers for Sale Hillside Washers for Sale Hillside Washers for Sale

WHILLCIO---

Scroll Right →

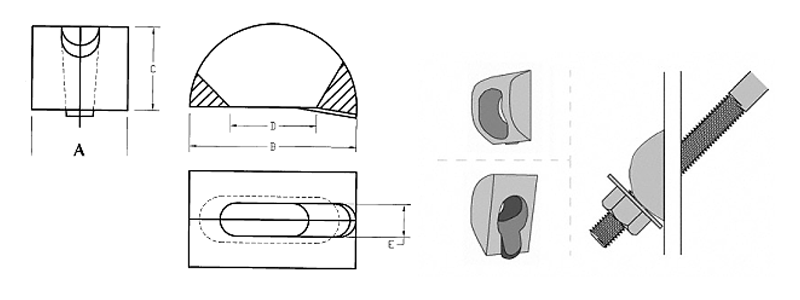

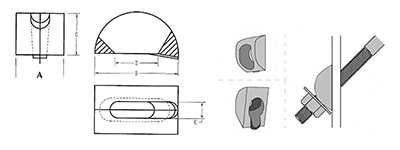

SIZE A B C D E
Min Max Min Max Min Max Min Max Min Max
3/8� 1-3/16 1-3/4 7/8 13/16 7/16
1/2" 1.29 1.35 1.97 2.03 0.97 1/2" 1.29 1.35 1.97 2.03
5/8" 1.41 1.47 2.22 2.28 1.10 5/8" 1.41 1.47 2.22 2.28
3/4" 1.59 1.65 2.35 2.41 1.10 3/4" 1.59 1.65 2.35 2.41
7/8" 1.78 1.84 2.85 2.91 1.28 7/8� 1.78 1.84 2.85 2.91
1" 1.97 2.03 3.10 3.16 1.60 1" 1.97 2.03 3.10 3.16
1-1/4" 2-3/8 4-3/4 1-11/16 2-1/4 1-1/8

Disclaimer: The dimensions listed are for reference only. Sizes not listed may be available off the shelf or can be manufactured to customer requirements.
