Standard Pattern Nuts
Plain = NM020----
Zinc = NM020----Z1

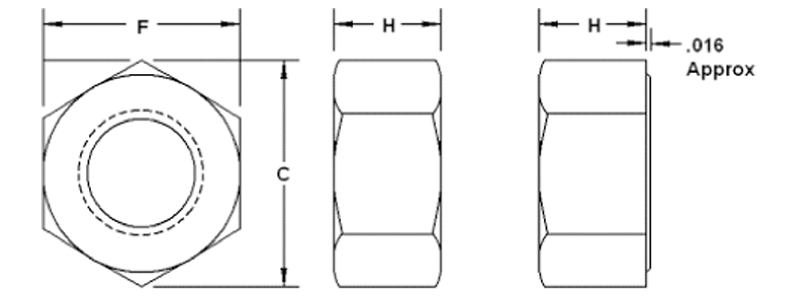

| Nominal Size | F | H | Weight Per C |
| Width Across Flats | Thickness Hex Nut | ||
| 2-56 | 3/16 | 1/16 | .04 |
| 3-48 | 3/16 | 1/16 | .04 |
| 4-40 | 1/4 | 3/32 | .10 |
| 5-40 | 5/16 | 7/64 | .20 |
| 6-32 | 5/16 | 7/64 | .20 |
| 8-32 | 11/32 | 1/8 | .27 |
| 10-24 | 3/8 | 1/8 | .32 |
| 10-32 | 3/8 | 1/8 | .32 |
| 12-24 | 7/16 | 5/32 | .52 |
Small / Extra small Pattern Nuts
Stainless = NME188----
Brass = NMSBRS----
Stainless and Brass only
| Nominal Size | F | H | Weight Per C | |
| Width Across Flats | Thickness Hex Nut | |||
| 0-80 | 5/32 | 3/64 | .01 | |
| 1-72 | 5/32 | 3/64 | .01 | |
| 2-64 | 3/16 | 1/16 | .04 | |
| 3-56 | 3/16 | 1/16 | .04 | |
| SP | 4-36 | 3/16 | 1/16 | .04 |
| SP | 4-40 | 3/16 | 1/16 | .04 |
| 4-48 | 1/4 | 3/32 | .10 | |
| 5-44 | 5/16 | 7/64 | .20 | |
| SP | 6-32 | 1/4 | 3/32 | .10 |
| 6-40 | 5/16 | 7/64 | .20 | |
| ESP | 8-32 | 1/4 | 3/32 | .10 |
| SP | 8-32 | 5/16 | 7/64 | .20 |
| 8-36 | 11/32 | 1/8 | .27 | |
| 12-28 | 7/16 | 5/32 | .52 |
Disclaimer: The dimensions listed are for reference only. Sizes not listed may be available off the shelf or can be manufactured to customer requirements.
