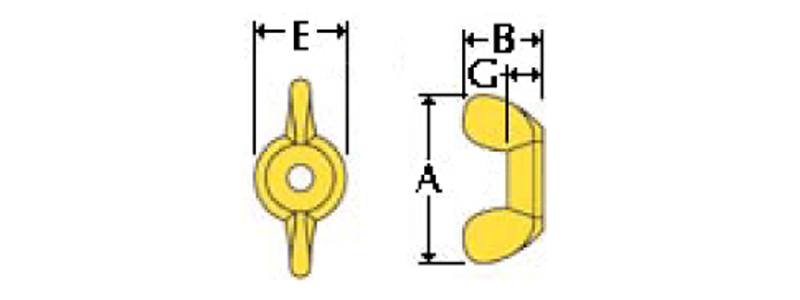

(Type A)
Plain = NWCF020----
Zinc = NWCF----Z1
| Nominal Size | A | B | E | G | Weight per C | ||||
| Wing Span | Wing Height | Bass Diameter | Bass Height | ||||||
| Max | Min | Max | Min | Max | Min | Max | Min | ||
| 6 | .72 | .59 | .41 | .28 | .33 | .29 | .14 | .10 | .41 |
| 8 | .91 | .78 | .47 | .34 | .43 | .39 | .18 | .14 | .84 |
| 10 | .91 | .78 | .47 | .34 | .43 | .39 | .18 | .14 | .82 |
| 1/4 | 1.120 | .97 | .57 | .43 | .50 | .45 | .22 | .17 | 1.22 |
| 5/16 | 1.25 | 1.12 | .66 | .53 | .58 | .51 | .25 | .20 | 2.15 |
| 3/8 | 1.44 | 1.31 | .79 | .65 | .70 | .64 | .30 | .26 | 3.55 |
| 7/16 | 1.94 | 1.81 | 1.00 | .87 | .93 | .86 | .39 | .35 | 7.75 |
| 1/2 | 1.94 | 1.81 | 1.00 | .87 | .93 | .86 | .39 | .35 | 8.61 |
| 5/8 | 2.76 | 2.62 | 1.44 | 1.31 | 1.19 | 1.13 | .55 | .51 | |
Disclaimer: The dimensions listed are for reference only. Sizes not listed may be available off the shelf or can be manufactured to customer requirements.
