Slotted Hex Castle

Low Carbon Steel

Slotted Hex Castle for Sale Slotted Hex Castle for Sale Slotted Hex Castle for Sale

Plain = NY020 -

Zinc = NY020 - Z1

Scroll Right →

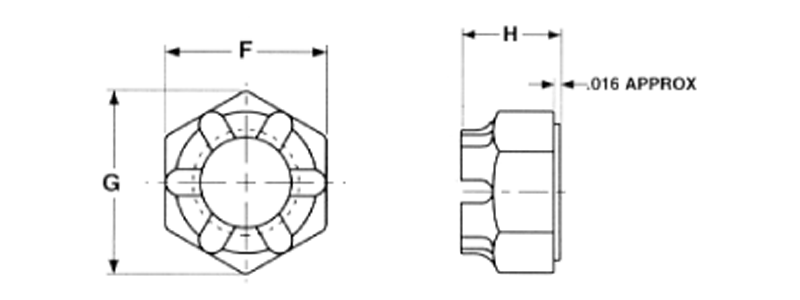

Hex Castle Nuts - ANSI B18.2.2 - 1970
Diameter F H
Across Flats Height Weight Per C
1/4 7/16 9/32 .75
5/16 1/2 21/64 1.1
3/8 9/16 13/32 1.52
7/16 11/16 29/64 2.11
1/2 3/4 9/16 3.83
9/16 7/8 39/64
5/8 15/16 23/32 7.11
3/4 1-1/8 13/16 10.6
7/8 1-5/16 29/32 17.1
1 1-1/2 1 25.3
1 1/8 1 11/16 1 5/32 37.1
1 1/4 1 7/8 1 1/4 52.5
1 3/8 2 1/16 1 3/8 75.1
1 1/2 2 1/4 1 1/2 94.8
1 5/8 2 7/16 1 19/32 114
1 3/4 2 5/8 1 23/32 134
2 3 1 31/32 200
2 1/4 3 3/8 2 1/4 282
2 1/2 3 3/4 2 1/2 387

All Castle Nuts are Fine Thread

Disclaimer: The dimensions listed are for reference only. Sizes not listed may be available off the shelf or can be manufactured to customer requirements.
