Wing Nut Stamped

(Type A)

Wing Nut Stamped for Sale Wing Nut Stamped for Sale Wing Nut Stamped for Sale

Plain = NWS020----

Zinc = NWS----Z1

Scroll Right →

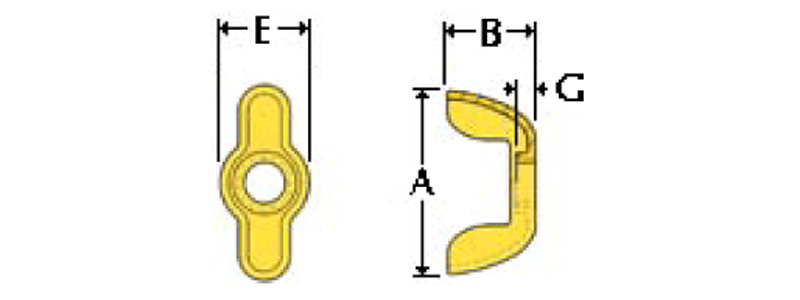

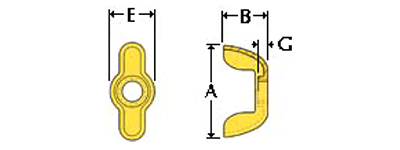

Nominal Size A B E G Weight per C
Wing Span Wing Height Bass Diameter Bass Height
Max Min Max Min Max Min
6 .78 .72 .40 .34 .41 .35 .08 .4
8 .78 .72 .40 .34 .41 .35 .08 .4
10 .91 .85 .47 .41 .53 .47 .10 .5
1/4 1.11 1.05 .50 .44 .62 .56 .11 1.0
5/16 1.30 1.24 .59 .53 .73 .67 .14 1.4
3/8 1.41 1.34 .67 .61 .83 .77 .16 2

Disclaimer: The dimensions listed are for reference only. Sizes not listed may be available off the shelf or can be manufactured to customer requirements.
